LTAM : “Let’s Talk About Music”

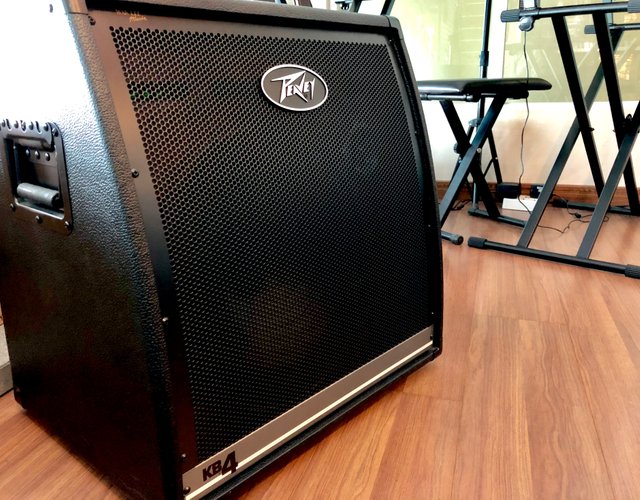

PEAVEY KB4 is a 75 watts 1x15 inch 4 channel combo keyboard amplifier.

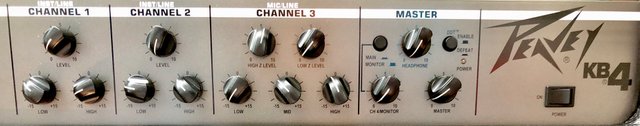

Control Panel on Top

Four inputs that features separate input controls at each channel. Channel 1 & 2 have Stereo 1/4 inch inputs, channel 3 have Stereo 1/4 inch inputs and XLR input (mic) and channel 4 is to cennct to the output of any line-level device.

Channel 1 & 2 (Inst/Line) has active tone controls for the high and low frequency range.

Channel 3 (Mic/Line) has separate controls. HIGH Z LEVEL is to control the high impedance input source with a 1/4-inch phono plug. LOW Z LEVEL is to control low impedance or low level source with a XLR MALE connector. An additional mid frequencies tone control for Channel 3.

MASTER section comes with DDT Selector (Distortion Detection Technique) that is a Peavey’s exclusive speaker protection unique circuit. By switching into ENABLE, it will activate the compressor to reduce gain and clipping from overload the amplifier!

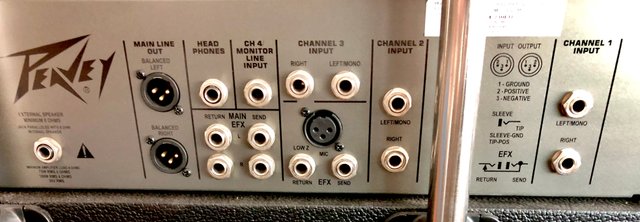

Rear Panel

A built-in balanced stereo XLRs just like a Directbox (DI-OUT).
A readied stereo Headphone Jack to connect with the volume control at the TOP PANEL.
SEND/RETURN are available to connect any effects unit or equalizer in stereo mode.
Additional second speaker can be connected directly using a 1/4-inch jack that is driven by the powered signal from the Amp with the requirements based on; 150-watts RMS @ 8-ohm or 200-watts RMS @ 4-ohm.

A reliable and powerful personal amplifier not just for keyboard but can be use for other instruments such as acoustic guitars, electric guitars, digital drums or any other backing machines.

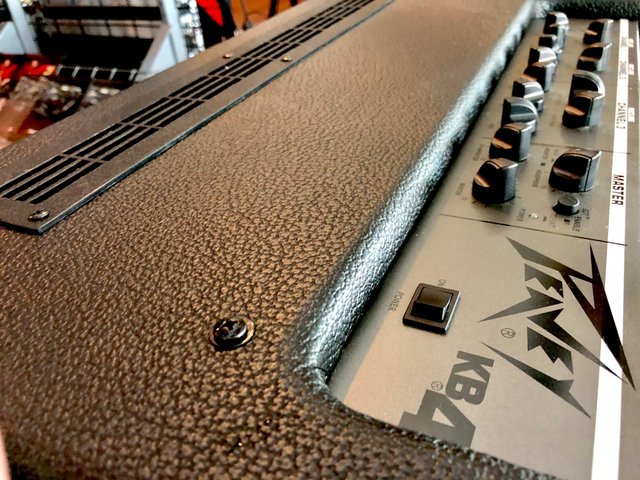

Casters and handle are built ready for easy moving
