How to Create a Sphere Using SelfCAD
How to Create a Sphere Using SelfCAD
Welcome to this tutorial on creating a sphere using SelfCAD. SelfCAD is a user-friendly 3D modeling software that empowers both beginners and professionals to bring their ideas to life in the world of 3D design. In this tutorial, we'll guide you through the step-by-step process of crafting a perfect sphere, whether you're a seasoned designer or just getting started with 3D modeling.
By the end of this tutorial, you'll have a solid understanding of how to utilize SelfCAD's tools and features to create intricate spherical shapes for your projects. To access the interactive tutorial to this article https://www.selfcad.com/tutorials/4c2w1nx321f4t4v960141k5pq6q2rh3i4k46
Once you’ve launched the editor;
From the 3D Shapes category on the Toolbar choose Sphere

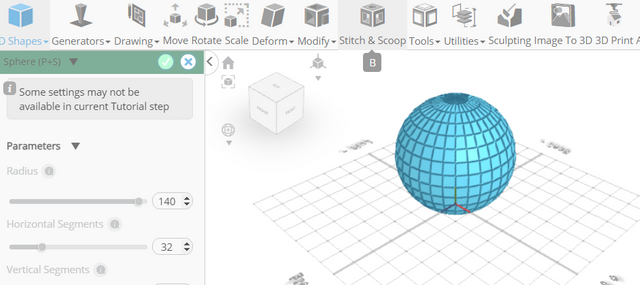

Set Radius to 140

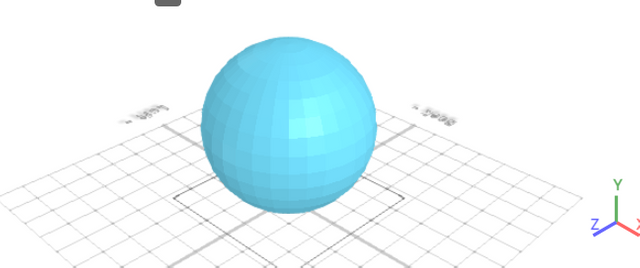

Tick the check mark to finalize Sphere

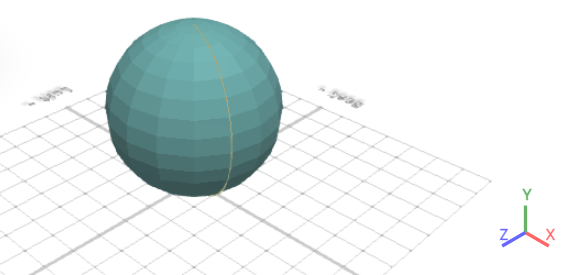

Click+Wireframe button to set rendering mode
Click to activate Edge Selection

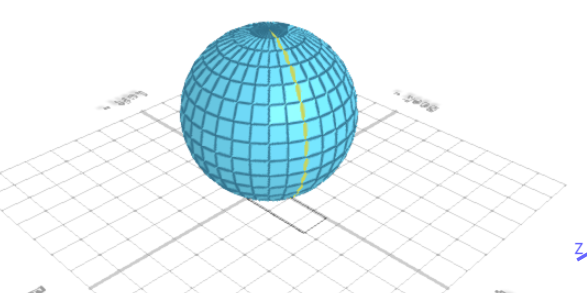

Click on highlighted region to select it
Click Copy button to copy selected objects

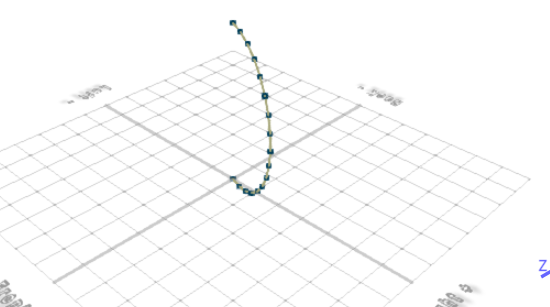

Click Isolate button to Isolate selected objects
From the Tools category on the Toolbar choose Revolve
Click Revolve Around Edge button to draw the Edge you want to Revolve Around
Set Edge Mode to draw

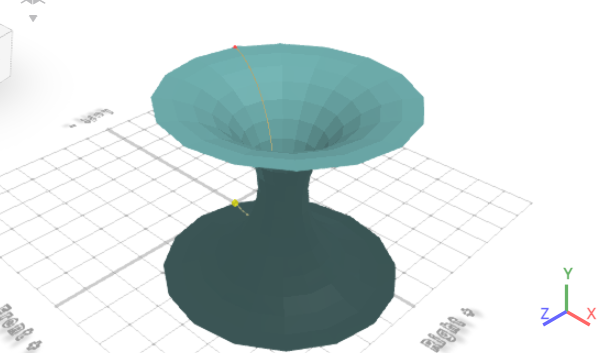

Click on highlighted point to draw revolve line

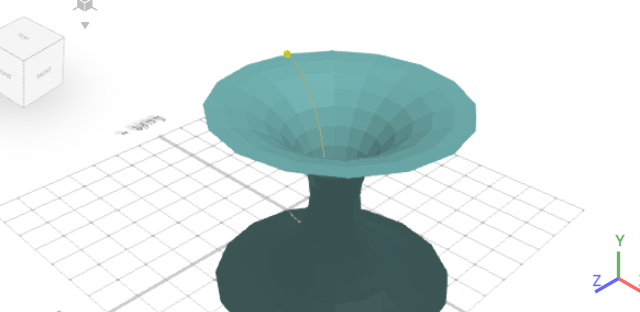

Click on highlighted point to draw revolve line

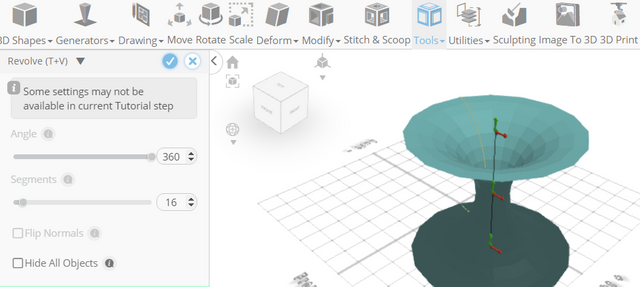

Tick the check mark to finalize Revolve
As you continue honing your design skills, remember that SelfCAD offers a wealth of resources to support your learning journey. To deepen your understanding and explore more advanced features, consider checking out the interactive tutorials (https://www.selfcad.com/tutorials) available on the SelfCAD website. The tutorials page provides a treasure trove of guides, tips, and tricks that cater to designers of all levels.
More structured learning experience can also be accessed at the SelfCAD Academy (https://www.selfcad.com/academy/curriculum/), https://www.youtube.com/@3dmodeling101, and 3D Modeling 101 series (https://www.youtube.com/playlist?list=PL74nFNT8yS9DcE1UlUUdiR1wFGv9DDfTB). This comprehensive resource offers in-depth courses taught by industry experts, allowing you to master the intricacies of SelfCAD at your own pace.
