LTAM #77 : Radial SB-2 Passive Direct Box
LTAM : “Let’s Talk About Music”

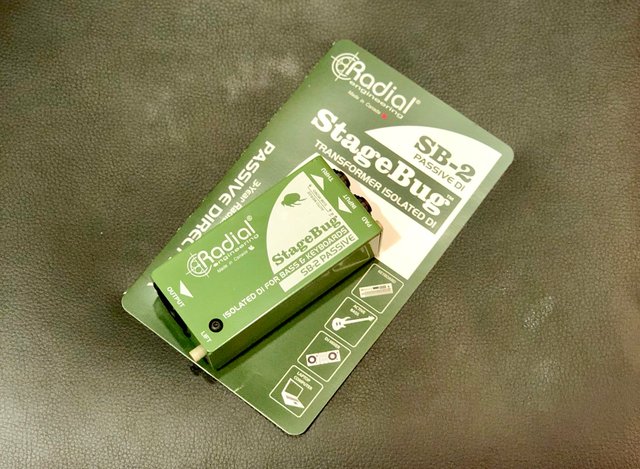

RADIAL StageBug SB-2
The Radial StageBug SB-2 is a Passive Direct Box that is made in Canada. This is made of high performance transformer isolated direct box and it is ultra compact in size.
This passive Direct Box is made specially for bass, acoustic guitar and keyboard. The transformer isolation eliminates noise to the mixing console.
Small in Size but Big in Performance
for ACOUSTIC GUITAR or BASS

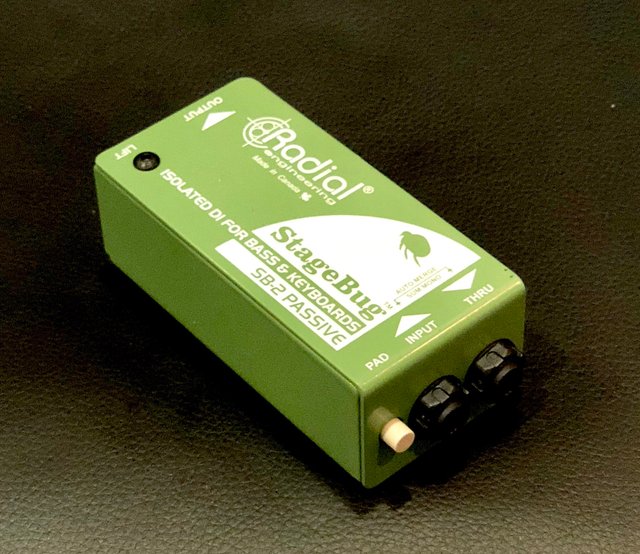

The Direct Box begin with a 1/4 inch input (INPUT) and sending signal to the stage amplifier with a 1/4 input output (THRU). The balanced output (OUTPUT) is sending signal to the PA System that eliminates nasty hum or noise.
for KEYBOARD (in stereo mode)
By connecting from keyboard with stereo jacks straight to both 1/4 inch sockets (INPUT & THRU), it will automatically merge both Left & Right Signal from the keyboard into MONO just by sending to the PA System.
If the instrument signals are too strong or high, the -10 dB pad can be activated by pressing it.

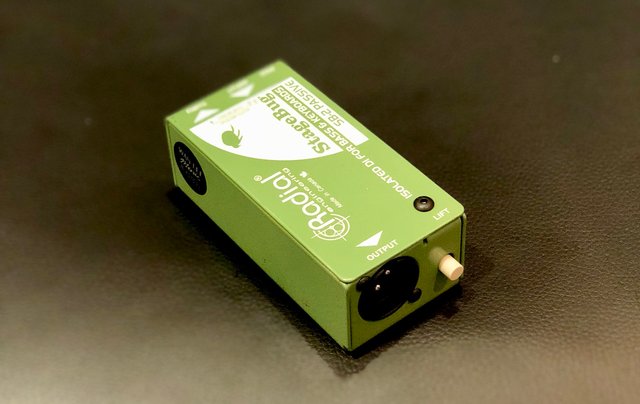

With the LIFT button is a GROUND LIFT switch that lifts the PIN-1 at the XLR (OUTPUT) for a quiet result at the PA System.
Is available here!
Showroom Location
WAN LEE MUSIC
Ground Floor & First Floor
MPWPL U0390, Jalan Tun Mustapha
P O Box 80419, 87014 Labuan F T, Malaysia
