CNC Lathe Machine Programming - Basic Commands And Examples
Introduction
Axes
- We are using a 2 axes CNC Lathe Machine so literally there will be 2 axes along which the movement of the tool will take place.
X | Moves the tool vertically |
Z | Moves the tool horizontally |
Sequence Number
N Adress
- This is used to identify a certain block, it is always placed at the beginning of the block and could be referred to as the name of that block.
Preparatory Function
G Adress
- This determines how the the tool moves to the programmed target. Here are the commonly used G adresses during my experience
WORD | FUNCTION |
G00 | Rapid Traverse Movement |
G01 | Linear Interpolation |
G02 | Clockwise Circular Interpolation |
G03 | Counter Clockwise Circular Interpolation |
G50 | Setting Workpiece Coordinated System |
G70 | Finishing Cycle |
G71 | Axial Roughing Cycle |
G72 | Radial Roughing Cycle |
G92 | Thread Cutting Cycle |
Miscellaneous Function
M Adress
- This are programmed to control the machining operation and not for coordinate movement.
WORD | FUNCTION |
M3 | Spindle Clockwise or Start of Program |
M4 | Spindle Counter Clockwise |
M30 | End of Program |
Tool Function
T Adress
- This is used to select a certain tool for the programmed target.
WORD | FUNCTION |
T01 | Represents Tool Number 1 |
T02 | Represents Tool Number 2 |
T03 | Represents Tool Number 3 |
T04 | Represents Tool Number 4 |
Spindle Function
S Adress
- This commands the spindle speed and is measured in revolutions per minute.
WORD | FUNCTION |
S800 | Spindle Speed at 800 RPM (Revolutions Per Minute) |
S1000 | Spindle Speed at 1000 RPM (Revolutions Per Minute) |
S1200 | Spindle Speed at 1200 RPM (Revolutions Per Minute) |
Examples

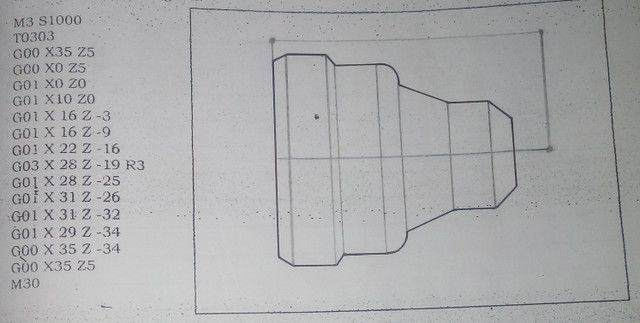

Here is an example of one of our activities before in which we are tasked to draw the figure that the program should output.

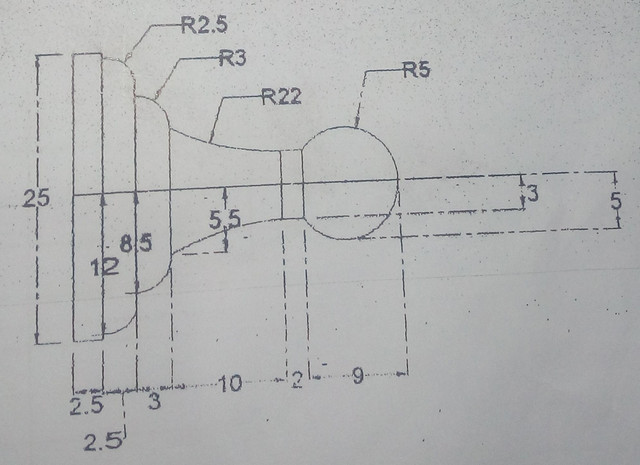

In this example we are tasked to give the correct program to display this output.
Here is the code that I made for this figure:
M3
T0303
S1000
G00 X30 Z5
G00 X0 Z5
G01 X0 Z0
G03 X10 Z-4.5 R5
G03 X6 Z-9 R5
G01 X6 Z-11
G02 X11 Z-21 R22
G03 X17 Z-24 R3
G03 X24 Z-26.5 R2.5
G01 X25 Z-26.5
G01 X25 Z-29
G00 X30 Z-29
G00 X30 Z5
M30
Conclusion
CNC Machining and Programming is a great skill to possess since it is very in demand in the field. It is a great privilege for us mechanical engineering students to have known and develop this skill.
My greatest thanks to Engr. Orlene Balungkas for teaching us trainees about CNC Machining and Programming. One thing I could never forget about, was having a present from him on our final examination. He challenged us to have a perfect score for the exam and however gets perfect and had submitted first will get to have a pre-loved NBA Jersey from him. So I strived hard to earn that reward and so I did. Im happy to have a remembrance of his great effort in teaching us and I'd treasure it as a sign of my respect for him. He is a great instructor and I looked up on him.
Here is the pre-loved jersey that I received from him, a Golden States Warriors Stephen Curry Jersey.
