Multipolar Planetary Nebula

No, planetary nebulae have nothing to do with planets. Instead, these are low and intermediate mass stars in the senior citizen phase of their lives. After they have puffed off their outer layers, the central stellar remnant is surrounded by cloud of gas and dust. The shape of this cloud can vary greatly from planetary nebula to planetary nebula (see Figure 1). Some of the planetary nebulae have spherical envelopes while some are jumbled knots. Radiation from the stellar remnant (which will evolve into a white dwarf) can excite regions in its dusty veil which can make for some spectacular images.

Figure 1. Different shapes of planetary nebulae. Credit: Swinburne

Despite all the images available from the Hubble Space Telescope (HST), astronomers are still uncertain what causes the twisted nature of the dust cloud of many planetary nebulae. The planetary nebula's shape is believed to be formed from the rotation of its central star. It could be that there is an unseen companion star inside the cloud and their gravitational dance stirs the cloud into the twisted structures we see from Earth. Another possibility is that the central star has multiple poles that could also account for the shape. Multipolar nebulae are objects that have at least two pairs of axial symmetric structures. Hsia et al. (2019) used optical and infrared images to study the planetary nebula IRAS 21282+5050 (see Figure 2).

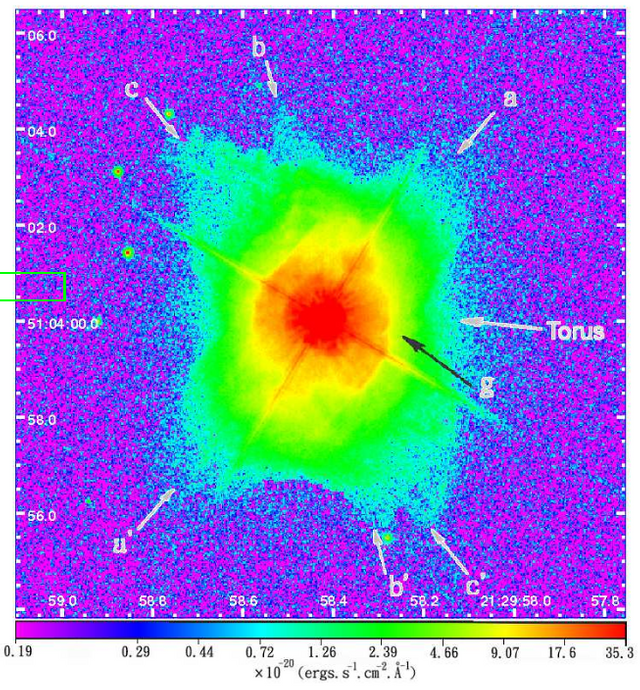

Figure 2. Morphology of planetary nebula IRAS 21282+505. The center of the nebula is "g". The three axial structured imaged are a-a', b-b', and c-c'. Credit: Hsia et al. 2019

As seen in Figure 2 above, the astronomers discovered three pairs of bipolar lobes in the nebula. Using infrared red observations, they also discovered an inner torus perpendicular to the elliptical shell. They then used these data to construct a model of the nebula to simulate the resulting shape in such a way that it could be rotated and viewed from various angles (see Figure 3).

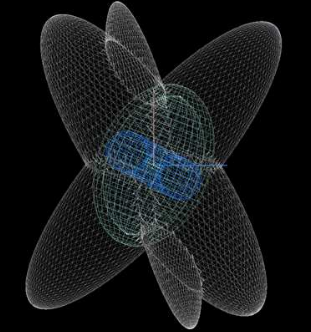

Figure 3. 3-D model image of IRAS 21282 showing the infrared torus in blue. Credit: Hsia et al. 2019

Additionally, the research team used their model to compare with other planetary nebulae (see Figure 4). The model of IRAS 21282+5050 was rotated to attempt to show the same perspective for these other nebulae. It is interesting how similar they look, suggesting that perhaps multipolar systems are more common than previously thought and a lot of the differences in appearance can be resolved by rotating the viewing angle. Of course, more research is needed to confirm or rule this out.

Figure 4. Various rotations of IRAS 21282+5050 compared to other HST images of planetary nebulae

References

Hsia, C-H et al. 2019, https://arxiv.org/pdf/1902.08851.pdf
