Transformer
!

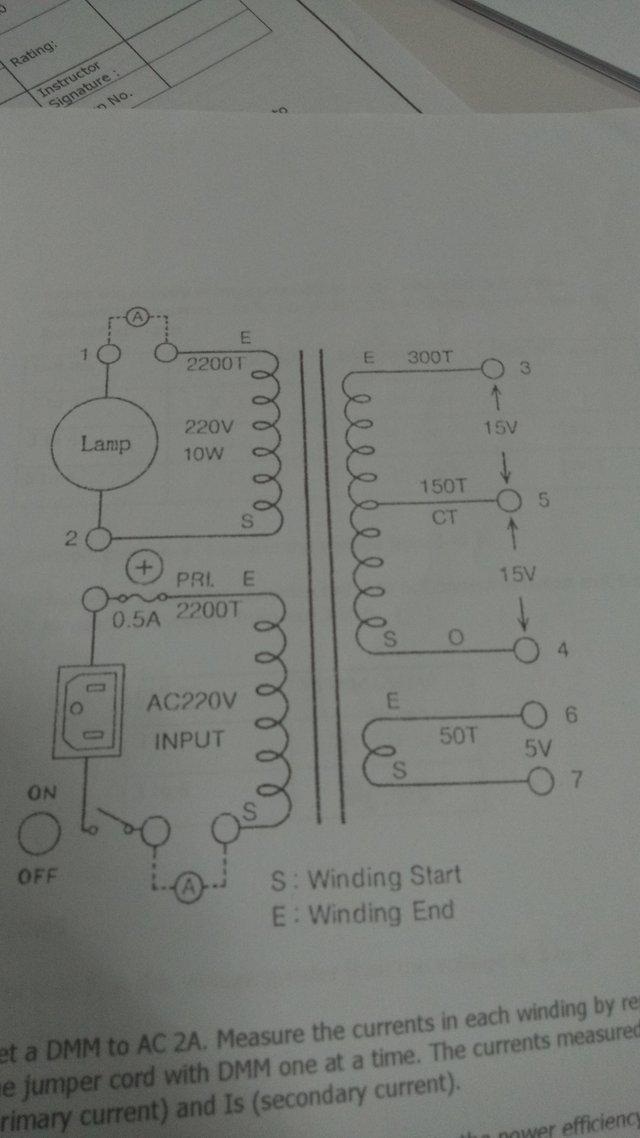

The first image is an example of a schematic diagram of a Power Transformer.
A transformer is a static electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. A varying current in one coil of the transformer produces a varying magnetic field, which in turn induces a varying electromotive force (emf) or voltage in a second coil. Power can be transferred between the two coils, without a metallic conection between the two circuits.
A transformer can also be used to either increase or decrease voltages in electric power applications.
For more information about Power Transformer and its applications, refer to Google.
Like and follow!
Thanks and have a great day!
